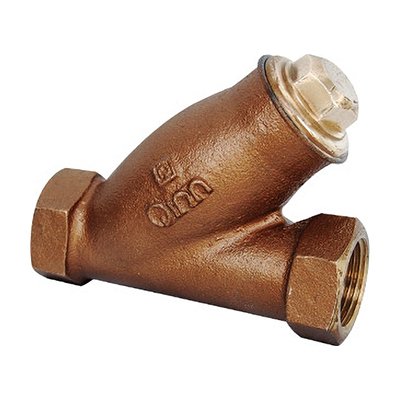

Q-107- Qinn BRONZE ‘Y’ TYPE STRAINER
PRODUCT DETAILS
Y-TYPE BODY,SCREWED IN COVER WITH PERFORATED NON MAGNETIC S.S. SCREEN
END DETAILS
SCREWED FEMALE ENDS BSPT TO BS:21
TESTING
500 psig.(Hyd.)
WORKING PRESSURE
SUITABLE FOR STEAM UP TO 250 psig. MAX. WORKING TEMP 225° C.
| MATERIALS OF CONSTRUCTION | ||||
| S.NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | BODY | BRONZE | BS:1400 LG2 | |
| 2 | SCREEN | S.S | AISI-304 | |
| 3 | GASKET | C.A.F | STEAM JOINTING | |
| 4 | BONNET | BRONZE | BS:1400 LG2 | |

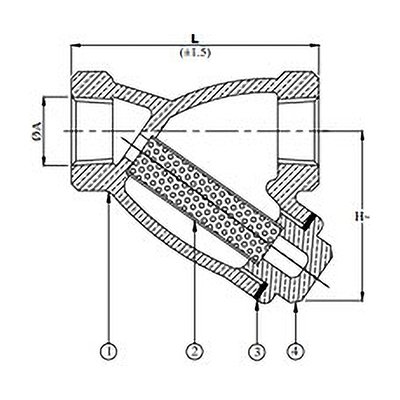

| DIMENSIONS IN mm | |||
| NOMINAL SIZE | ∅A | L(+1.5) | H~ |
| 15mm | 1/2” BSP | 76 | 54 |
| 20mm | 3/4” BSP | 98 | 67 |
| 25mm | 1” BSP | 133 | 85 |
| 32mm | 1.1/4″BSPT | 152 | 85 |
| 40mm | 1.1/2″BSPT | 178 | 115 |
| 50mm | 2″BSPT | 222 | 138 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
