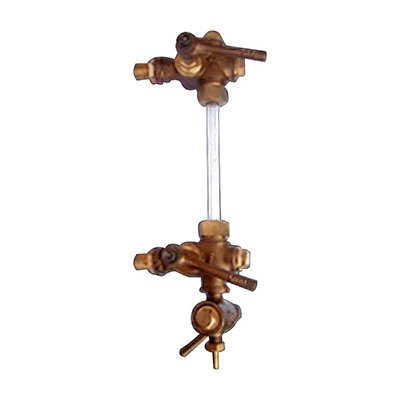

Q-111 – Qinn BRONZE WATER LEVEL GAUGE (ASBESTOS PACKED)
PRODUCT DETAILS
END DETAILS
SCREWED MALE END BSP TO BS:21
TESTING
300 psig.(Hyd.)
WORKING PRESSURE
SUITABLE FOR STEAM LINE UPTO 150 psig MAX. WORKING TEMP. 437º F (225º c)

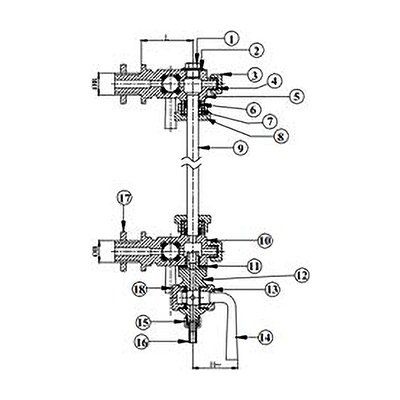

| MATERIALS OF CONSTRUCTION | ||||
| S. NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | PLUG | BRONZE | BS:1400 LG2 | |
| 2 | GASKET | STEAM JOINTING | ——— | |
| 3 | SIDE NUT | BRONZE | BS:1400 LG2 | |
| 4 | GASKET | STEAM JOINTING | ———- | |
| 5 | UPPER ARM | BRONZE | BS:1400 LG2 | |
| 6 | PACKING | GRAPHITED ASBESTOS | ———— | |
| 7 | GLAND | BRONZE | BS:1400 LG2 | |
| 8 | GLAND NUT | BRONZE | BS:1400 LG2 | |
| 9 | GLASS TUBE | GLASS | ———– | |
| 10 | LOWER ARM | BRONZE | BS:1400 LG2 | |
| 11 | GASKET | STEAM JOINTING | ———— | |
| 12 | DRAIN COCK | BRONZE | BS:1400 LG2 | |
| 13 | PLUG NUT | BRONZE | BS:1400 LG2 | |
| 14 | PLUG | BRONZE | BS:1400 LG2 | |
| 15 | UNION NUT | BRONZE | BS:1400 LG2 | |
| 16 | TAIL PIPE | BRASS | BS:2872 CZ114 | |
| 17 | LOCK NUT | BRONZE | BS:1400 LG2 | |
| 18 | BOTTOM NUT | BRONZE | BS:1400 LG2 | |
| DIMENSIONS IN mm | |||
| NOMINAL SIZE | ∅B | H~ | L (+1.5) |
| 15mm | 1/2″ BSP | 60 | 66 |
| 20mm | 3/4″ BSP | 70 | 82 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
