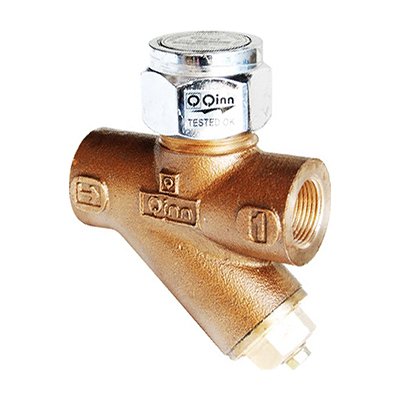

Q-113 – Qinn BRONZE THERMODYNAMIC STEAM TRAP
PRODUCT DETAILS
RENEWABLE SS-410(HARDENED) SEATS WITH NON MAGNETIC PERFORATED SCREEN.
END DETAILS
SCREWED FEMALE END BSP TAPER THREADS TO BS:21
TESTING
SHELL TEST PRESSURE 34.5 BAR HYDRAULIC.
WORKING PRESSURE
SUITABLE FOR STEAM UP TO 250 psig.
| MATERIALS OF CONSTRUCTION | ||||
| PART NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | SEAT COVER | S.S. | AISI-410 | |
| 2 | DISC | S.S. | AISI-410 | |
| 3 | SEAT | S.S. | AISI-410 | |
| 4 | BODY | BRONZE | BS:1400 LG2 | |
| 5 | SCREEN | S.S. | AISI-304 | |
| 6 | GASKET | C.A.F. | —– | |
| 7 | SCREEN PLUG | BRONZE | BS:1400 LG2 | |
| 8 | RELEASE PLUG | CARBON STEEL | BS:916 GALVANIZED | |
| DIMENSIONS IN mm | |||
| NOMINAL SIZE | ∅B | L+1.5 | H~ |
| 15mm | 1/2” BSPT | 83 | 63.0 |
| 20mm | 3/4” BSPT | 96 | 73.0 |
| 25mm | 1” BSPT | 120 | 85.0 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
