Q-116 – Qinn BRONZE PARALLEL SLIDE BLOW OFF VALVE
PRODUCT DETAILS
RACK & PINION OPERATED WITH RENEWABLE SS WORKING PARTS AND TIGHT SHUT OFF TYPE.
END DETAILS
FLANGED ENDS TO BS-10 TABLE ‘H’
WORKING
SUITABLE FOR STEAM UP TO 250 Psig.
TESTING
500 psig.HYDRAULIC.

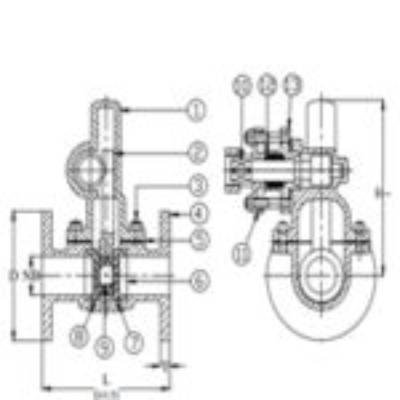

| MATERIALS OF CONSTRUCTION | ||||
| PART NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | BONNET | BRONZE | BS:1400,LG2 | |
| 2 | RACK | BRONZE | BS:1400,LG2 | |
| 3 | STUDS & NUTS | CARBON STEEL | BS: 916 | |
| 4 | BODY | BRONZE | BS:1400,LG2 | |
| 5 | GASKET | CAF | STEAM JOINT | |
| 6 | BODY SEAT RING | S.S. | AISI-410 | |
| 7 | MALE DISC | S.S. | AISI-410 | |
| 8 | FEMALE DISC | S.S. | AISI-410 | |
| 9 | SPRING | S.S. | AISI-304 | |
| 10 | PINION | BRONZE | BS:1400,LG2 | |
| 11 | GLAND | BRONZE | BS:1400,LG2 | |
| 12 | PACKING | CAF | STEAM JOINT | |
| 13 | STUFFING BOX | BRONZE | BS:1400,LG2 | |
| DIMENSIONS IN mm | |||||
| NOMINAL SIZE | NB | D | L+1.5 | T | H |
| 25mm | 25 | 121 | 169 | 14 | 150 |
| 40mm | 38 | 140 | 190 | 18 | 205 |
| 50mm | 46 | 165 | 206 | 20 | 206 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
