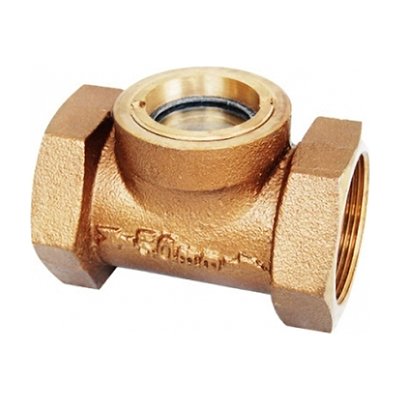

Q-126 – Qinn BRONZE SIGHT GLASS
PRODUCT DETAILS
FULL FLOW, TOUGHENED GLASS SEALED WITH CAF GASKET FROM TWO SIDE AND SCREWED IN BRONZE RING.
END DETAILS
SCREWED FEMALE BSP TAPER THREADS TO BS:21
TESTING
34.5 Bar (HYDRAULIC)
WORKING
SUITABLE FOR STEAM LINES UP TO MAX. BOP 17.24
| MATERIALS OF CONSTRUCTION | ||||
| S.NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | BODY | BRONZE | BS:1400 LG2 | |
| 2 | COVER | BRONZE | BS:1400 LG2 | |
| 3 | GLASS | TOUGHENED GLASS | —– | |
| 4 | GASKETS | CAF | —– | |

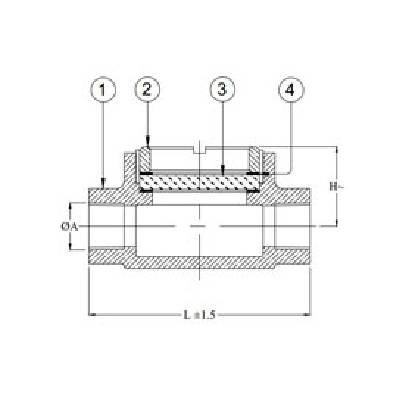

| DIMENSIONS IN mm | |||
| NOMINAL SIZE | A | L | H~ |
| 15mm | 1/2” BSPT | 94 | 34 |
| 20mm | 3/4” BSPT | 98 | 37 |
| 25mm | 1” BSPT | 102 | 42 |
| 40mm | 1.1/2” BSPT | 120 | 52 |
| 50mm | 2” BSPT | 125 | 58 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
