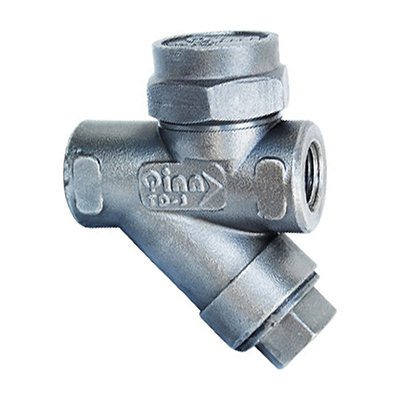

Q-211 – Qinn STAINLESS STEEL THERMODYNAMIC STEAM TRAP
PRODUCT DETAILS
THERMODYNAMIC TYPE WITH IN BUILT STRAINER & INTEGRAL SEATING
END DETAILS
SCREWED FEMALE BSP AS BS:21
TESTING
B.T.P. :- AT 600 psig. HYDRAULIC
WORKING
SUITABLE FOR MAX. BOP 31bar AT 400 ° C

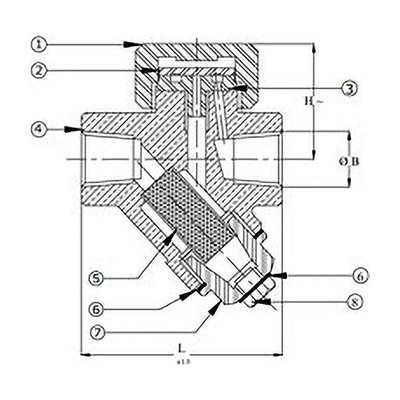

| MATERIALS OF CONSTRUCTION | ||||
| PART NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | TOP NUT | S.S. | ASTM A743, CA-40 | |
| 2 | DISC | S.S. | ASTM A743, CA-40 | |
| 3 | BODY | S.S. | ASTM A743, CA-40 | |
| 4 | SCREEN | S.S. | ASTM A743, CA-40 | |
| 5 | BOTTOM PLUG | S.S. | ASTM A743, CA-40 | |
| DIMENSIONS IN mm | |||
| NOMINAL SIZE | B | L | H~ |
| 15mm | 1/2” BSP | 80 | 45 |
| 20mm | 3/4” BSP | 80 | 45 |
| 25mm | 1” BSP | 87 | 50 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
