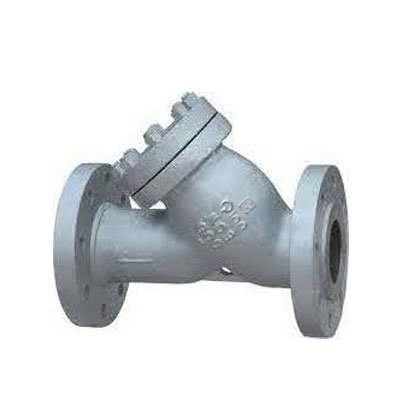

Q-306 – Qinn CAST STEEL ‘Y’ TYPE STRAINER
PRODUCT DETAILS
STAINLESS STEEL PERFORATED SHEET SCREEN SCREWED IN COVER WITH RELEASE PLUG.
END DETAILS
FLANGED ENDS AS PER BS:10 TABLE ‘J’
TESTING
700 psig (hyd.)
WORKING PRESSURE
SUITABLE FOR STEAM UP TO 350 psig
MAX. WORKING TEMP 400 C
| MATERIALS OF CONSTRUCTION | ||||
| PART NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | |
| 1 | BODY | CAST STEEL | ASTM A216 Gr. WCB |
|
| 2 | SCREEN | S.S. | AISI-304 | |
| 3 | GASKET | CAF | STEAM JOINTING | |
| 4 | COVER | CAST STEEL | ASTM A216 Gr. WCB |
|
| 5 | STUDS AND NUTS | CARBON STEEL | BS:916 | |
| 6 | GASKET | CAF | STEAM JOINTING | |
| 7 | DRAIN PLUG | CAST STEEL | ASTM A216 Gr. WCB |
|
| DIMENSIONS IN mm | ||||||
| NOMINAL SIZE | ∅A | ∅D | T | L(±1.5) | H~ | |
| 25MM | 25 | 121 | 19 | 181 | 140 | |
| 40MM | 38 | 140 | 22.2 | 260 | 152 | |
| 50MM | 50 | 165.1 | 25.4 | 277 | 182 | |
| 65MM | 63.5 | 185 | 25.4 | 277 | 225 | |
| 80MM | 76.2 | 203 | 31.7 | 296 | 275 | |
| 100MM | 100 | 229 | 35 | 403 | 300 | |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
