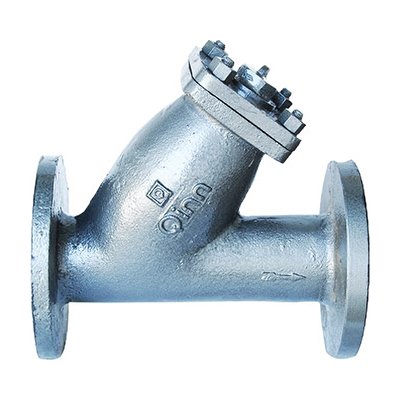

Q-82 – Qinn CAST IRON Y-TYPE STRAINER
PRODUCT DETAILS
FULL FLOW, BOLED BONNET ,DRAIN PLUG FOR CLEANING AND WITH NON-MAGNETIC (SS-304) SCREEN
END DETAILS
FLANGED ENDS TO BS:4504 PN10 OR BS:10 TABLE ‘H’
TESTING
HYDRAULIC.-300 psig.
| MATERIALS OF CONSTRUCTION | |||||||
| PART NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | ||||
| 1 | BODY | CAST IRON | BS:1452,Gr200 | ||||
| 2 | STRAINER/SCREEN | S.S | AISI-304 | ||||
| 3 | GASKET | C.A.F | —– | ||||
| 4 | BONNET | CAST IRON | BS:1452,Gr200 | ||||
| 5 | STUDS AND NUTS | CARBON STEEL | BS:916 | ||||
| 6 | GASKET | CAF | —– | ||||
| 7 | DTAIN PLUG | CAST IRON | BS:1452,Gr200 | ||||
| DIMENSIONS IN mm | |||||
| NOMINAL SIZE | L+1.0 | ∅B | ∅D~ | H~ | T~ |
| 25mm | 156 | 24 | 115 | 115 | 14 |
| 32mm | 180 | 30 | 140 | 130 | 16 |
| 40mm | 192 | 38 | 150 | 145 | 16 |
| 50mm | 220 | 48 | 165 | 155 | 18 |
| 65mm | 285 | 63 | 185 | 190 | 19 |
| 80mm | 300 | 78 | 200 | 230 | 19 |
| 100mm | 384 | 98 | 220 | 260 | 24 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
