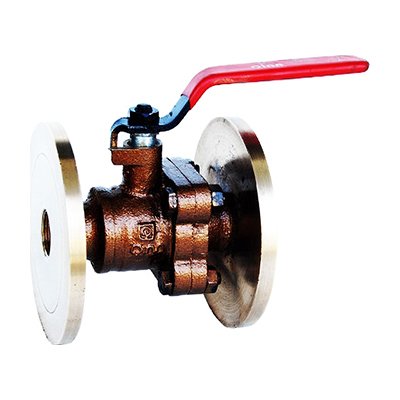

Q-87 – Qinn BRONZE BALL VALVE FLANGED
PRODUCT DETAILS
TWO PIECE DESIGN, FULL BORE, TEFLON SEATS & SEAL, S.S.BALL & STEM AND BLOW OFF PROOF STEM WITH LEVER OPERATED
END DETAILS
FLANGED TO BS-10 TABLE ‘D’
TESTING(HYD.)
BODY TEST PRESSURE : 300 psig.
SEAT TEST PRESSURE : 300 psig.
| MATERIALS OF CONSTRUCTION | |||||||
| PART NO. | PART’S NAME | MATERIALS | SPECIFICATIONS | ||||
| 1 | HANDLE | M.S | —– | ||||
| 2 | STEM NUT | CARBON STEEL | EN-8 | ||||
| 3 | GLAND NUT | CARBON STEEL | EN-8 | ||||
| 4 | GLAND PACKING | TEFLON | PTFE | ||||
| 5 | STEM SEAL | TEFLON | PTFE | ||||
| 6 | SEAT | TEFLON | PTFE | ||||
| 7 | BALL | SS | ——– | ||||
| 8 | BODY | BRONZE | BS:1400 LG2 | ||||
| 9 | STEM | S.S. | AISI-410 | ||||
| 10 | CONNECTOR | BRONZE | BS:1400 LG2 | ||||
| 11 | BOLT/NUT | CARBON STEEL | BS: 916 | ||||
| 12 | SEALING | RUBBER | NITRILE | ||||
| DIMENSIONS IN mm | ||||||
| NOMINAL SIZE | ∅A | L | H~ | ∅F | T | D~ |
| 15mm | 13.5 | 83 | 74 | 95.3 | 6.4 | 110 |
| 20mm | 17.5 | 95 | 74 | 101.6 | 6.4 | 110 |
| 25mm | 23.5 | 105 | 80 | 114.3 | 8.0 | 132 |
| 32mm | 29 | 120 | 100 | 120.7 | 8.0 | 152 |
| 40mm | 38 | 125 | 110 | 133.4 | 9.6 | 170 |
| 50mm | 48 | 157 | 125 | 152.4 | 9..6 | 210 |
| *65mm | 63 | 172 | 135 | 165.1 | 11.2 | 250 |
| *80mm | 77 | 210 | 145 | 184.2 | 13.0 | 327 |
| *100mm | 98 | 238 | 155 | 216 | 16.0 | 396 |
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
